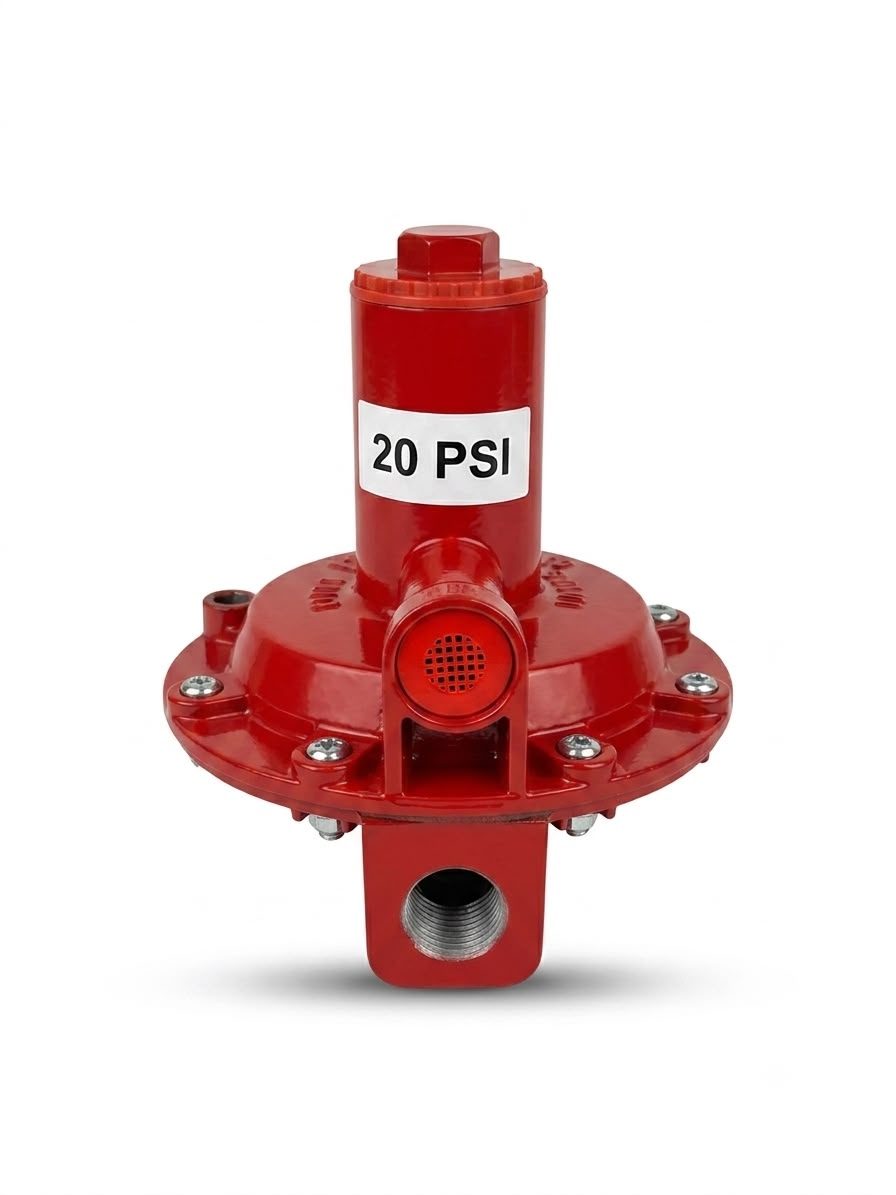

UNITED LPG HIGH PRESSURE REGULATOR
Item Code: 38665275989
1 / 2Product Overview
This is an industrial-grade high-pressure LPG regulator designed as a first-stage mainline regulator for cylinder systems. Engineered for commercial and bulk LPG applications, it regulates high inlet pressure from LPG cylinders down to a consistent midrange pressure suitable for second-stage regulators or manifold systems. Built with a robust cast iron body and brass valve components, the regulator delivers dependable pressure control and safety in demanding environments. The red, durable housing with integrated adjustment valve and secure mounting lugs allows for permanent installation on bulk supply systems, commercial kitchens, industrial burners, and heating installations. The regulator features a built-in pressure gauge for real-time monitoring and manual adjustment capability via the control knob. This first-stage regulator protects downstream equipment by maintaining stable pressure and preventing pressure surges from cylinder variations. Suitable for use in multi-cylinder manifold setups, this is a trusted workhorse for commercial-scale LPG distribution, rated for heavy continuous use in commercial and industrial settings. Ideal for: Commercial kitchens, industrial burners, bulk LPG supply systems, heating units, and manifold-based installations requiring stable high-pressure regulation.
Technical Specifications
| Parameter | Value |
|---|---|
| Component Type | High-Pressure LPG Gas Regulator, often single-stage. |
| Pressure Control | Adjustable pressure control mechanism. |
| Body Construction Materials | Durable brass body (for adjustable models), Metal body, Alloy (for some models like UNITED Reg 9 LPG High Pressure Regulator), Forged Aluminum body (e.g., for 1580V™ series), Die Cast Aluminum bonnet (e.g., for 1580V™ series). |
| Internal Components Materials | Steel spring (e.g., for 1580V™ series), Resilient Rubber valve seat discs (e.g., for 1580V™ series), Integrated Fabric and Synthetic Rubber diaphragms (e.g., for 1580V™ series). |
| Sealing | Leak-proof sealing design. |
| Compatibility | Compatible with standard LPG cylinders and hose connections. |
| Output Consistency | Stable gas output pressure. |
| Maintenance | Low maintenance design suitable for continuous commercial and industrial use. |
| Maximum Inlet Pressure | 25 KG/CM² (general listing), 10 bar (145 psi) for UNITED Reg 4 Regulator 15 Psi. |
| Maximum Outlet Pressure | 4 KG/CM² (general listing). |
| Outlet Connection | 1/2 Left Male (general listing). |
| Available Pressure Variants | 10,15,20 and 30 PSI. |
| Working Pressure | 2.1 Kg/Cm2 (general listing). |
| Range | 3.5 Kg/Cm2 - 10.5 Kg/Cm2 (general listing). |
| Safety Features | Often includes a sintered metal inlet filter to keep impurities from entering the regulator. |
₹2,000
