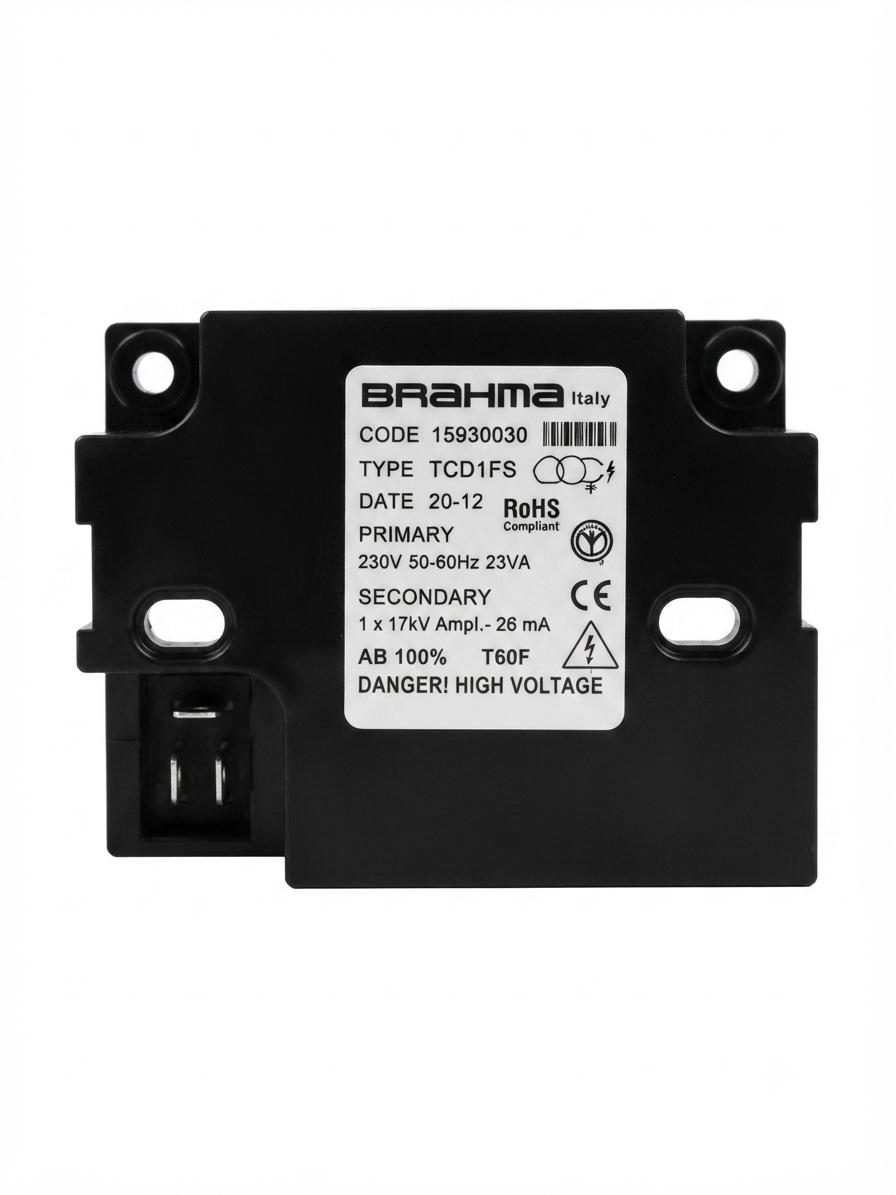

TCD1FS IGNITION TRANSFORMER 230V BRAHMA
Item Code: 38675684917
Product Overview
The Brahma TCD1FS Ignition Transformer is a compact, high-efficiency electronic unit engineered for reliable ignition across gas, light oil, and heavy oil burner applications. Operating on 230V AC 50/60 Hz with a 100% duty cycle, it delivers a high output voltage, with peak output of 17 kV and rated 4 kV, for consistent spark generation. Featuring built-in short-circuit protection and an integrated EMC filter, this transformer ensures stable and low-consumption (23 VA) operation in both domestic and industrial heating systems, with an operating temperature range of -20 to 60 °C. Its small size, high ignition power, and built-in varistor for power surge protection make it a dependable choice for critical ignition needs.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply voltage | 230V AC 50/60 Hz |
| Operating temperature | -20 to 60 C |
| Pole | single |
| Duty cycle | 100% |
| EMC filter | Standard |
| High voltage connection | Cylindrical terminal 0.4 mm |
| Power supply connection | Fast on plug |
| Max ignition cable length | 1.5 m |
| Output Voltage (Peak) | 17 kV |
| Output Voltage (Rated) | 4 kV |
| Output Current (Peak) | 83 mA |
| Output Current (Rated) | 26 mA |
| Power Consumption | 23 VA |
| Recommended Spark Distance | 3-5 mm |
| Weight | Approximately 250 g |
| Max. Dimensions (LxWxH) | 87.1 x 65.1 x 40.5 mm |
| Brand Origin | Italy |
| Certifications | CE, RoHS, IEC 61558-1, IEC 61558-2-3, Directive 2004/108/EC (EMC) |
| Short Circuit Protection | Built-in |
₹2,799
