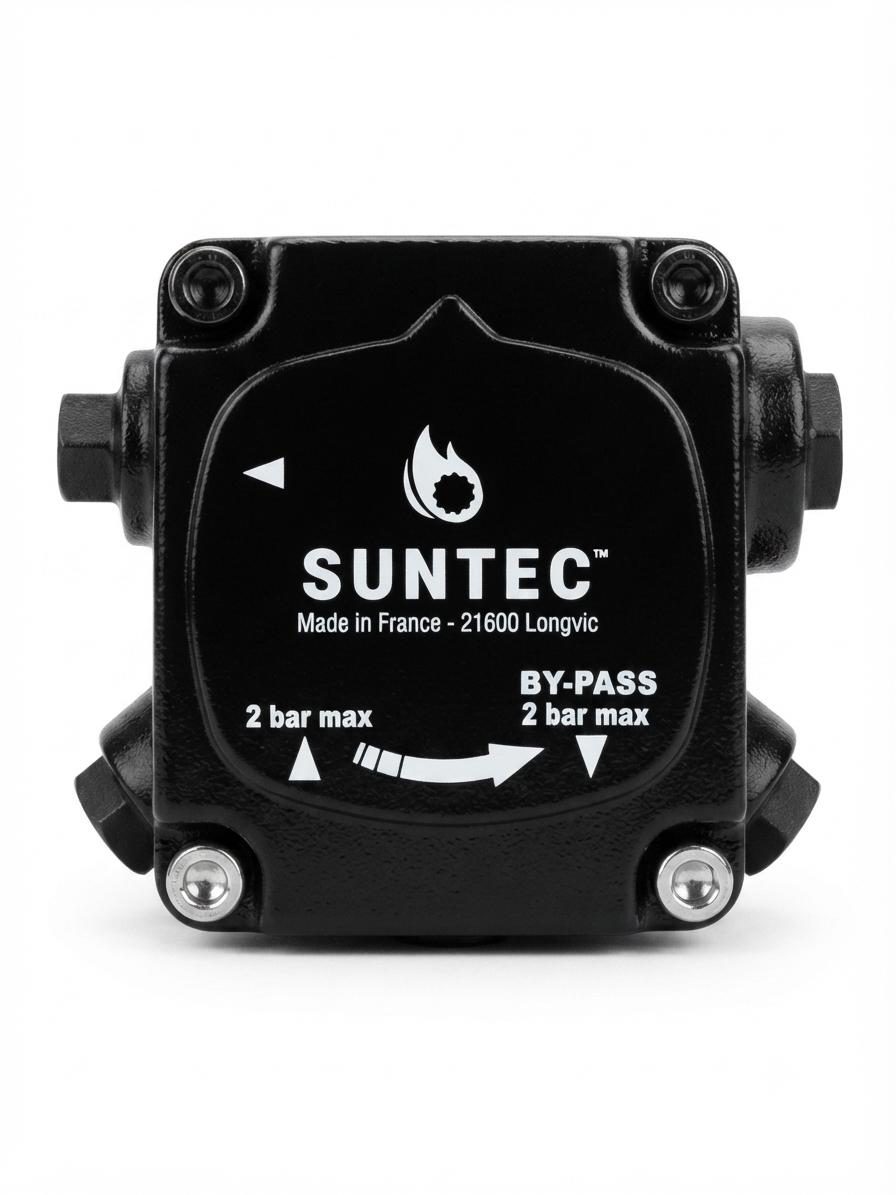

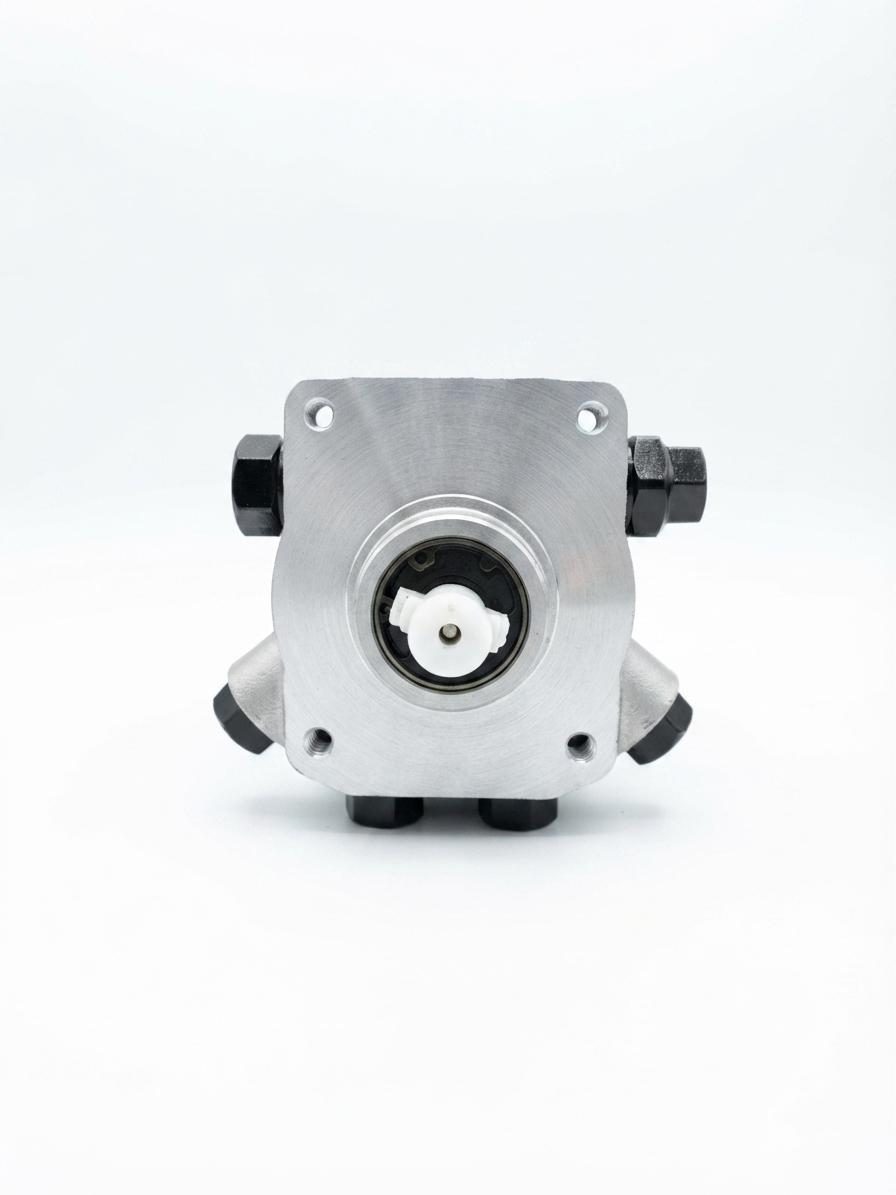

SUNTEC OIL PUMP AS47A
Item Code: 38625742239
1 / 2Product Overview
The SUNTEC OIL PUMP AS47A is a robust industrial burner fuel pump designed for efficient oil circulation in a wide range of heating systems, including industrial oil burners, heavy-duty commercial heaters, and diesel combustion systems, especially for small to medium-sized burners. Compatible with light oil, diesel, and kerosene, this 1-stage pump supports both one-pipe and two-pipe operations. It features a working pressure range of 7-14 bar and delivers a flow rate of 40 L/h at 10 bar. Ensuring reliable fuel delivery, it comes with a built-in pressure regulator, solenoid valve for fast cut-off, and a convenient cartridge filter.
Technical Specifications
| Parameter | Value |
|---|---|
| Pressure Range | 7-14 bar |
| Flow Rate | 40 L/h at 10 bar |
| Fuel Compatibility | Light Oil, Diesel, Kerosene |
| Connections | G1/4 BSP |
| Capacity (Max) | 47 l/h |
| Operation | 1-stage (1 or 2-pipe systems) |
| Built-in Features | Pressure Regulator, Solenoid Valve, Cartridge Filter |
| Factory Set Pressure | 9 bar |
| Inlet/Return Connection | G 1/4" (ISO 228/1 Cylindrical) |
| Strainer Open Area | 14 cm² |
| Strainer Opening Size | 150 µm |
| Shaft Diameter | Ø 8 mm (EN 225) |
| Weight | 1.1 - 1.5 kg |
| Max Oil Temperature (In-Pump) | 60°C |
| Max Inlet Pressure | 2 bar |
| Max Return Pressure | 2 bar |
| Max Suction Vacuum | 0.45 bar |
| Max Rated Speed | 3600 rpm |
| Solenoid Valve Consumption | 9 VA |
| Solenoid Valve Max Ambient Temp | 60°C |
| Protection Class | IP 41 |
₹6,000
GST @ GST@18% IncludedContextual WhatsApp FAQ Desk
