GAS FILTER
Item Code: 38675379969
Product Overview

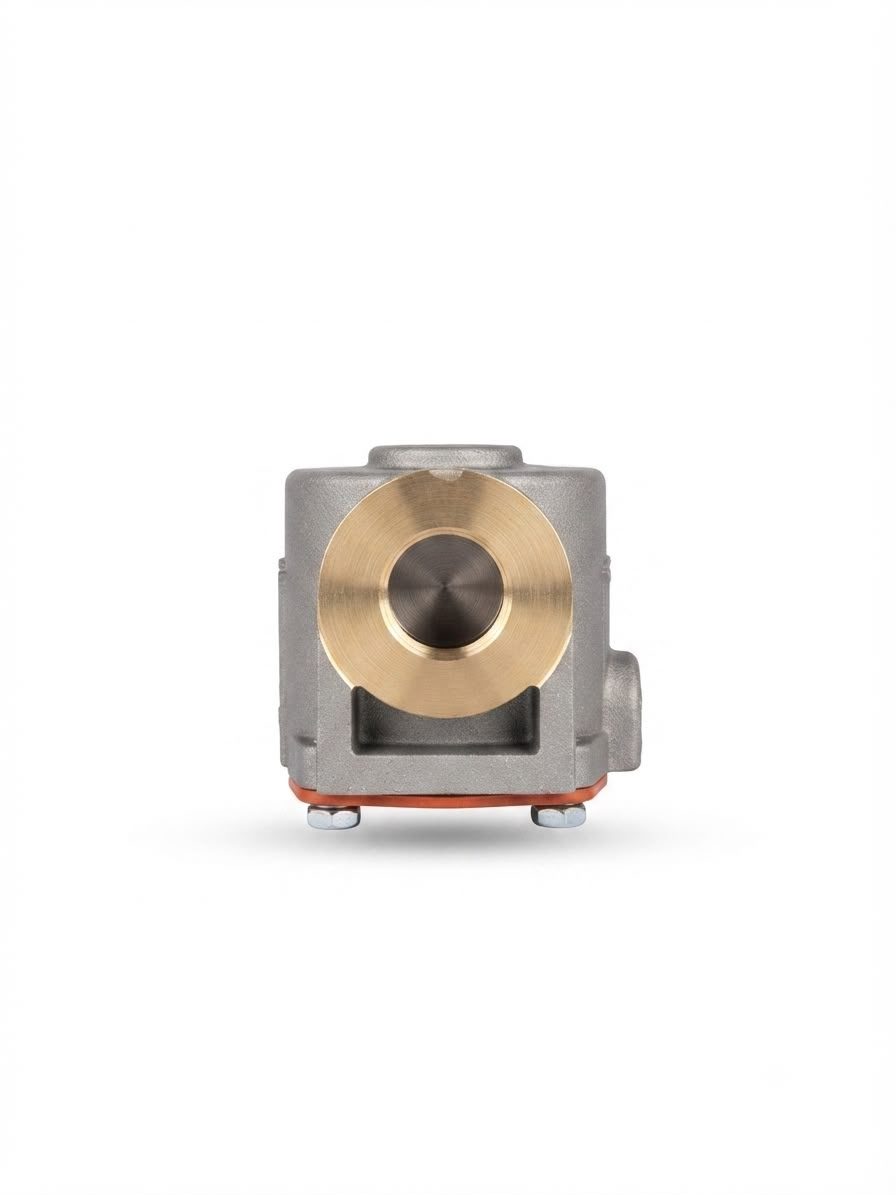

This FGS16 gas filter, sized DN15 (15mm connection), removes particulates from the gas supply line before it reaches the burner's control valves and burner head, protecting downstream components from contamination and wear.
Technical Specifications
| Parameter | Value |
|---|---|
| Connection Size | DN15 (Rp 1/2 threaded connection according to ISO 7-1 is available within the FGS range). |
| Component Type | Gas filter for pipelines |
| Body Material | Aluminum alloy die-cast |
| Filtering Cartridge Material | Steel support frame covered with a double-layer high-performance nonwoven made of polyolefine fibers |
| Maximum Operating Pressure | 2 bar (200 kPa) |
| Ambient Temperature Range | -15°C to +80°C |
| Compatible Gases | Natural gas, town gas, LPG (gaseous), biologically produced methane, and air. |
| Installation | Can be installed in both horizontal and vertical pipelines. |
| Optional Features | Can be provided with pressure gauges for both inlet and outlet chambers (optional for threaded models). Screw plugs (1/8") at the inlet and outlet are available. |
Standard Accessory Store
₹2,499
GST @ 18% IncludedAvailability:In Stock (15 PIECESs)
Shipping:Dispatched in 24 Hours
