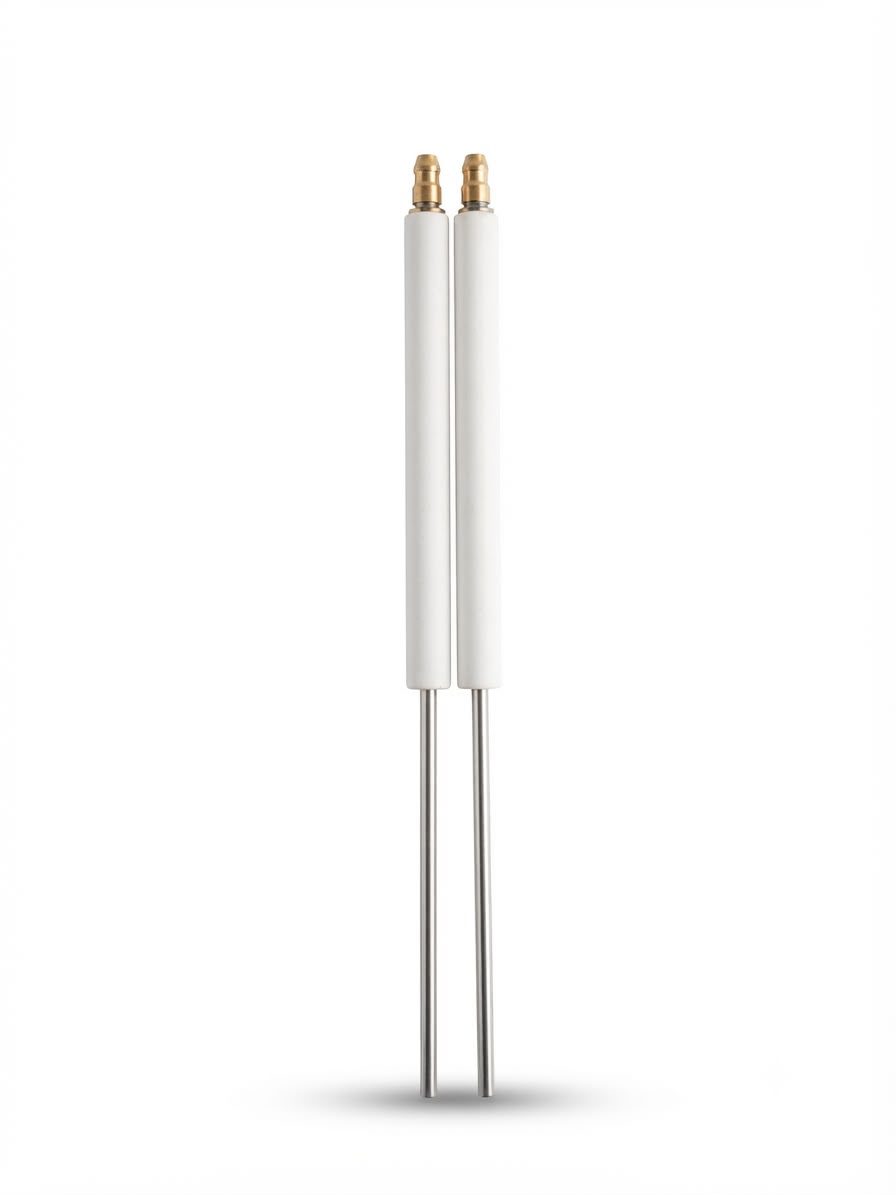

FT.15 BURNER CERAMIC IGNITION ROD 10/100/100mm
Item Code: 3865134381
Product Overview
The FT.15 Ceramic Ignition Rod is a precision spark electrode engineered specifically for assembly into FlameTech’s FT.15 Single/Two-Stage Gas Burner. Constructed from glazed high-alumina ceramic, the rod is built to withstand the extreme thermal cycling and high-temperature combustion environment demanded by ceramic kilns, glass annealing ovens, and metal heat-treatment furnace applications where the FT.15 operates. The ceramic glazing insulates the internal electrode core, preventing carbon tracking and flashover while ensuring a consistent, reliable spark for ignition even under continuous 24/7 industrial duty cycles. Designed to perform reliably up to 1500°C, the rod supports instant on-demand ignition without a standing pilot flame, working in coordination with the FT.15’s sequence controller and high/low fire modulation system for dependable startup at every firing cycle. As a direct-fit spare/assembly component for the FT.15 platform, this ceramic rod is manufactured to match OEM mounting dimensions and electrode gap tolerances, ensuring drop-in compatibility and consistent ignition performance across replacement and new-build burner units.
Technical Specifications
| Parameter | Value |
|---|---|
| Ceramic thickness | 10mm |
| Ceramic length | 100mm |
| Rod length | 100mm |
| Properties of 95% Alumina Ceramic (Mechanical Strength) | compressive strength exceeding 2000 MPa, flexural strength over 250 MPa. |
| Component Type | Ignition Electrode |
| Function | Generates a high-voltage spark to ignite the air-fuel mixture in industrial burner systems. |
| Insulator Material | High-purity Aluminum Oxide (Al₂O₃), 95% Alumina (AL95) |
| Properties of 95% Alumina Ceramic (Heat Resistance) | up to 1500°C for continuous operation. |
| Properties of 95% Alumina Ceramic (Electrical Insulation) | dielectric strength >15 kV/mm, volume resistivity >10¹³ Ω·cm. |
| Properties of 95% Alumina Ceramic (Thermal Shock) | Good thermal shock resistance. |
| Properties of 95% Alumina Ceramic (Corrosion/Wear) | Corrosion and wear resistance. |
| Electrode Material | Kanthal A-1. |
| Dimensions (General Diameter) | 10 mm |
| Dimensions (General Length) | Various lengths; 100mm ceramic body and/or overall length is |
| Typical Use Cases | Industrial gas/oil burner systems, boilers, furnaces, ovens, dryers. |
| Features | Reliable ignition spark, high-temperature resistant materials, quick and stable ignition, electrical safety, compatible with industrial ignition transformers, long service life. |
| Bulk Density | 3.6 g/cm³ |
| Flexural Strength | 320 MPa |
| Hardness Vickers | 12.2 GPa |
| Thermal Expansion Coefficient | 7.1 x 10⁻⁶/℃ |
| Thermal Conductivity | 16 W/(m·k) |
| Dielectric Strength | >15 kV/mm |
| Volume Resistivity | >1 x 10¹⁴ Ohm·Cm |
| Temperature Resistance (Ceramic) | Up to 1500°C |
| Ignition Voltage (Typical) | 5 – 15 kV |
