Gas Burners

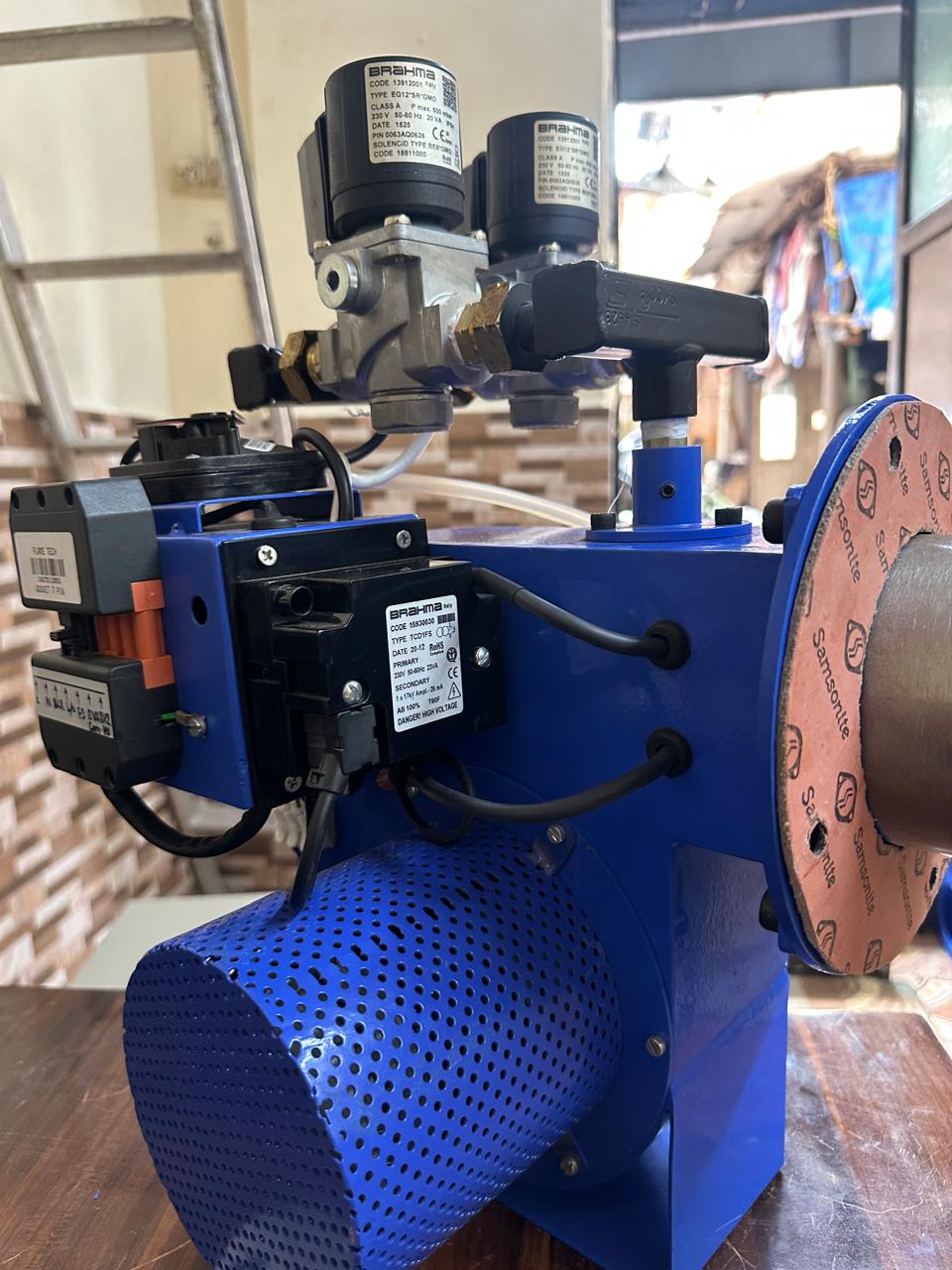

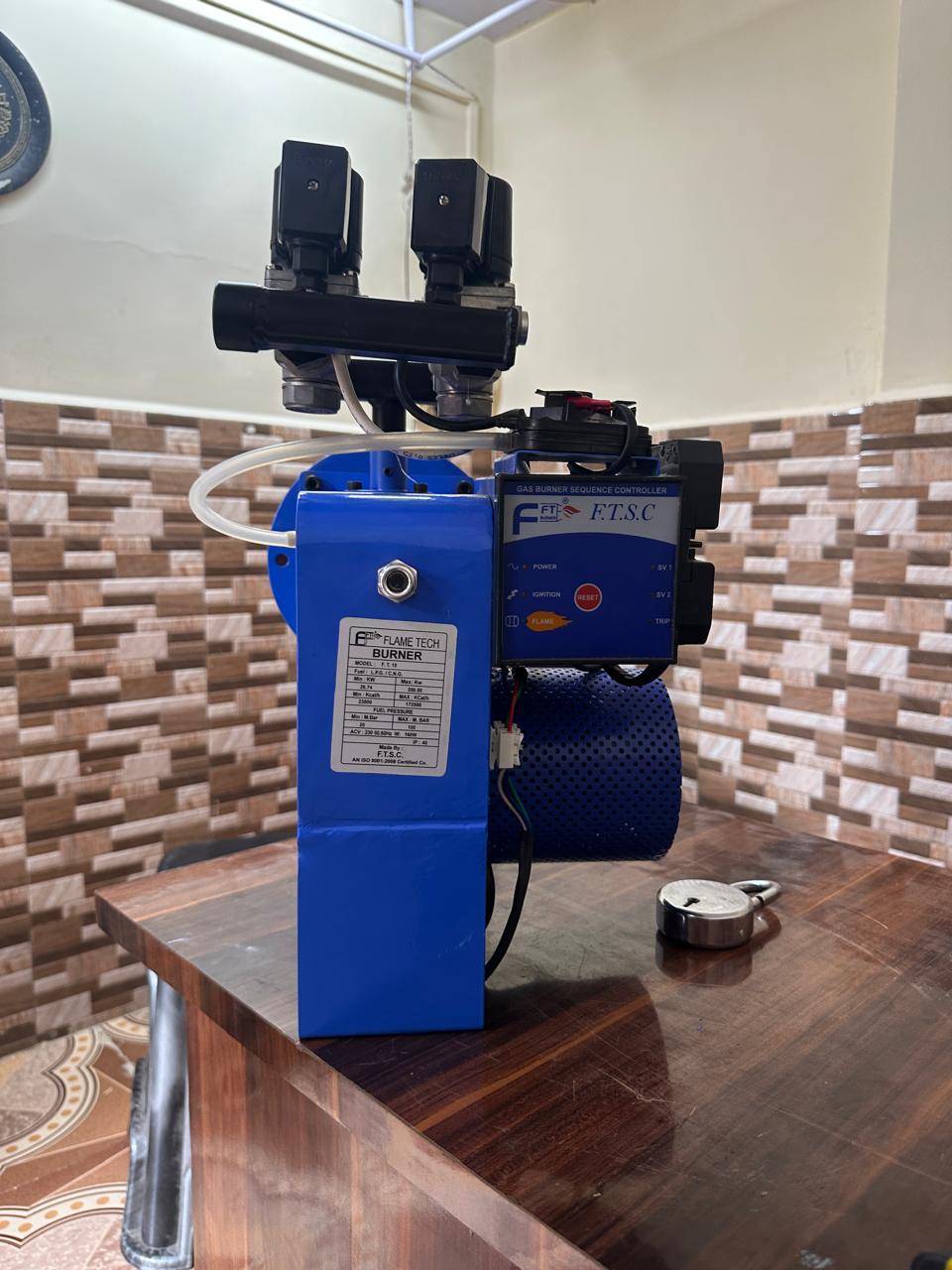

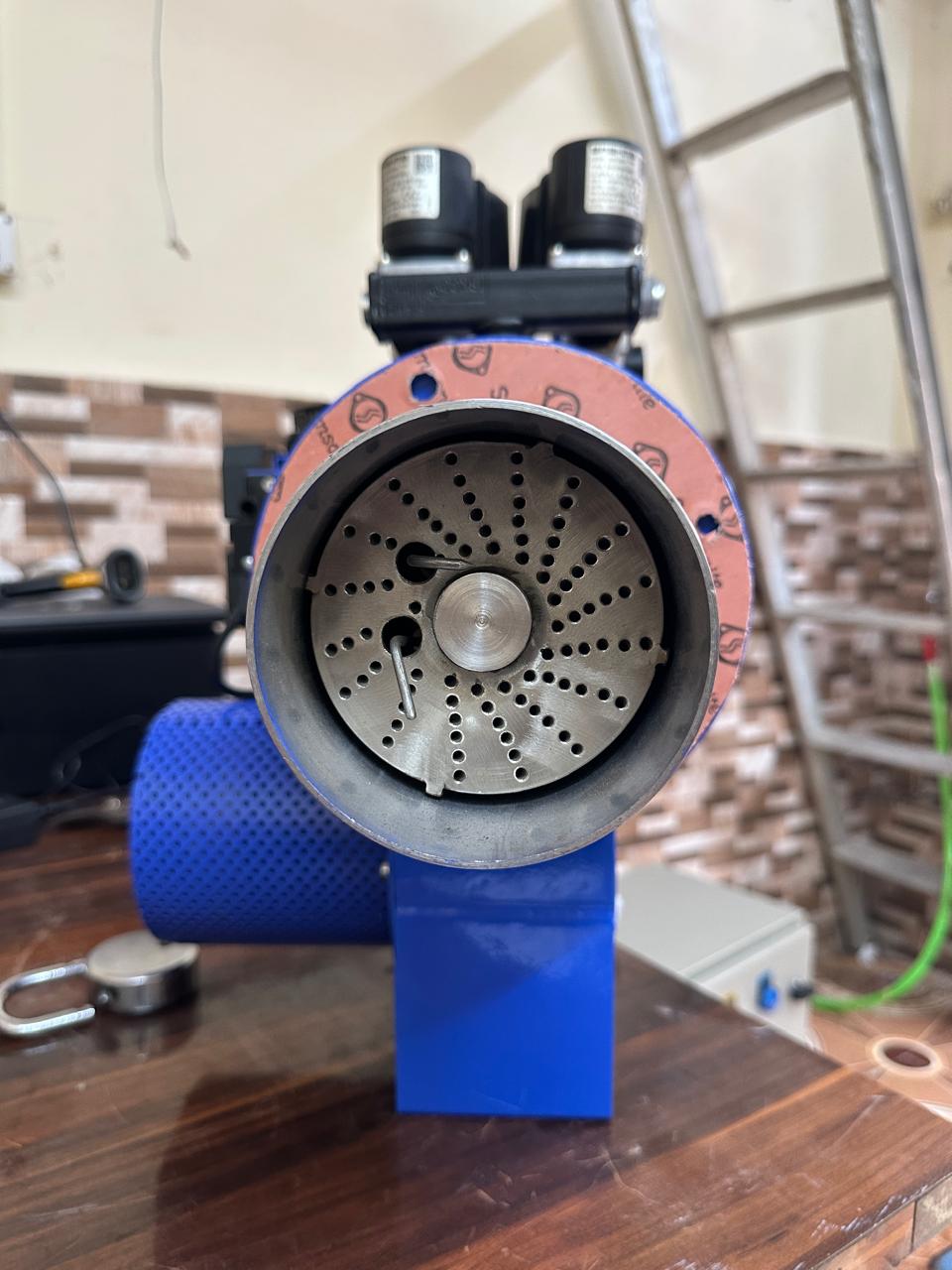

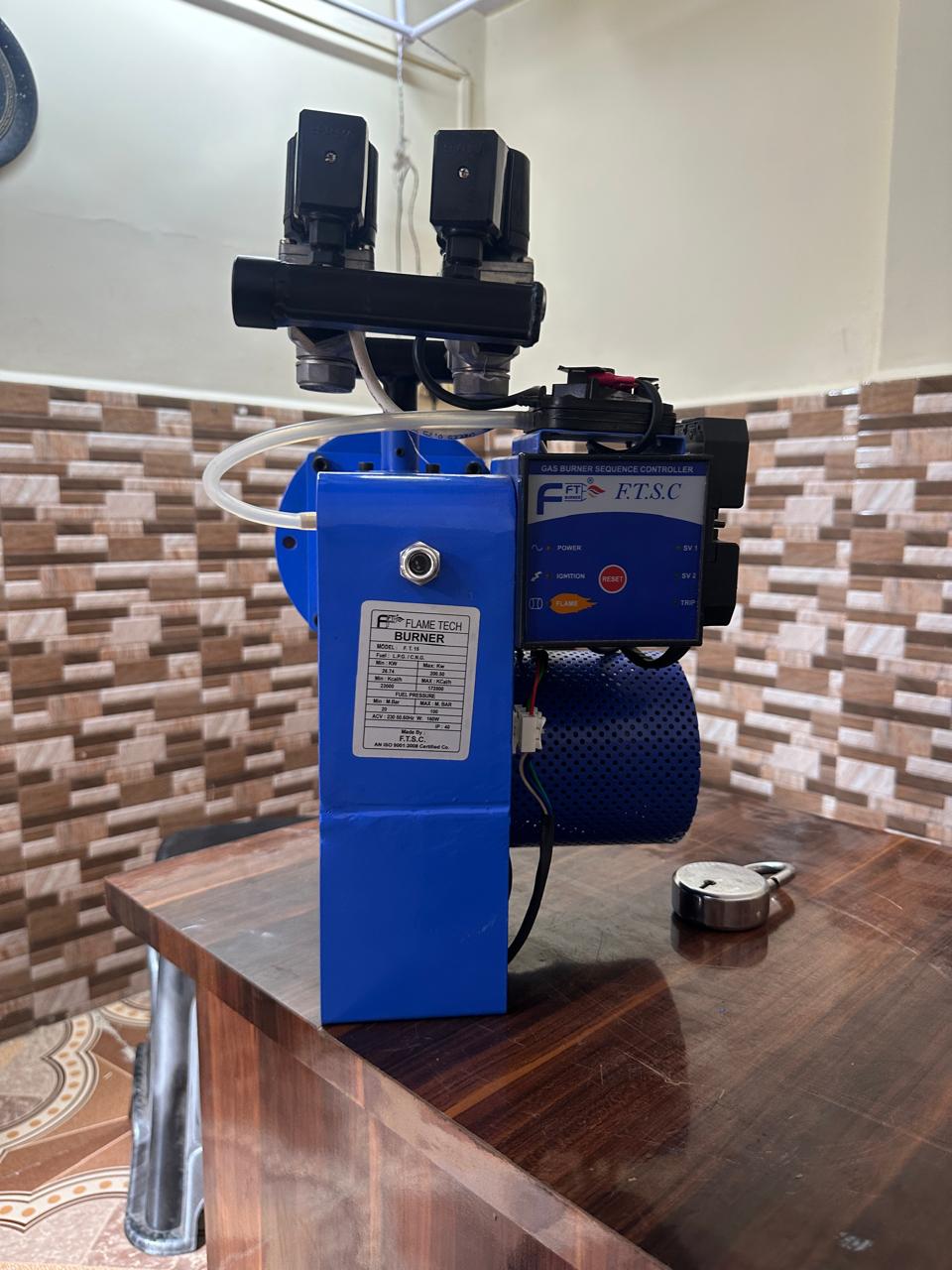

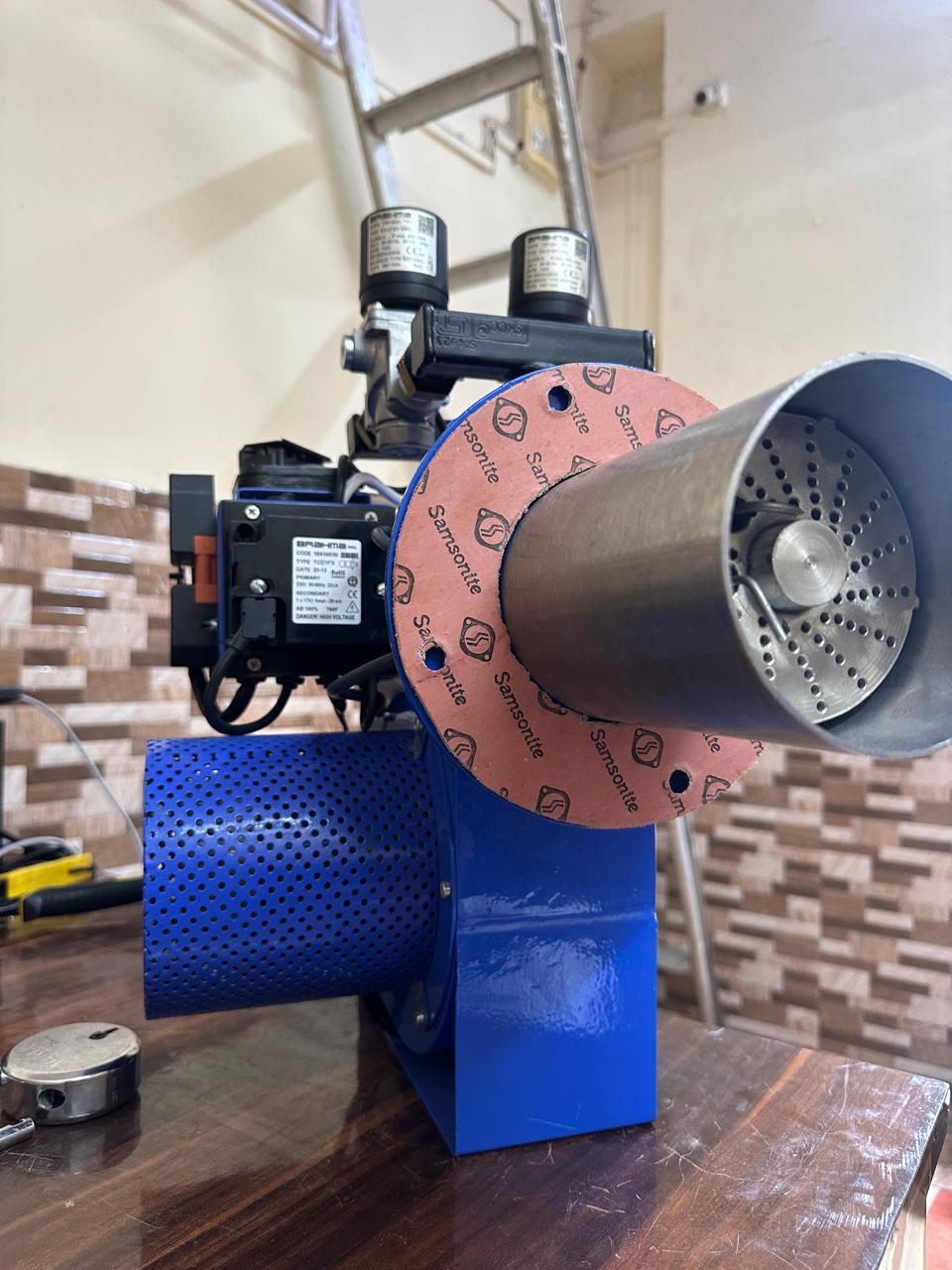

FT-15 Two Stage High-Temperature Gas Burner
Item Code: FT(15)-2S-HT
Product Overview
The FT-15 two-stage high-temperature variant is purpose-built for extreme thermal environments: ceramic and glass kilns, forging furnaces, heat treatment chambers, kitchen and bakery ovens, textile and more . The two-stage firing mode allows operators to ramp up temperature gradually, preventing thermal cracking of the burner and enables smooth operation and better process . Rated for up to 1,500°C. Includes refractory-grade SS blast tube and silicone-cable-rated sensor and ignition. Burner with accessible layouts are built using Design for Maintainability and Design for Disassembly
Technical Specifications
| Parameter | Value |
|---|---|
| Fuel Type | LPG / Natural Gas / CNG |
| Gas Pressure | 70-100 mbar |
| Motor Power | 200 W |
| Power Supply | 230V / 1Ph / 50Hz |
| Ignition | Automatic Spark |
| Blast Tube (Diameter) | 4 inch |
| Thermal Output Min | 23,000 Kcal/hr (27 KW/hr) |
| Thermal Output Max | 1,72,000 Kcal/hr (200 KW/hr) |
| Gas Flow Rate (Natural Gas) | 2.5 - 19 Nm3/hr |
| Gas Flow Rate (LPG) | 2 - 15 Kg/hr |
| Blast tube length | customisable |
