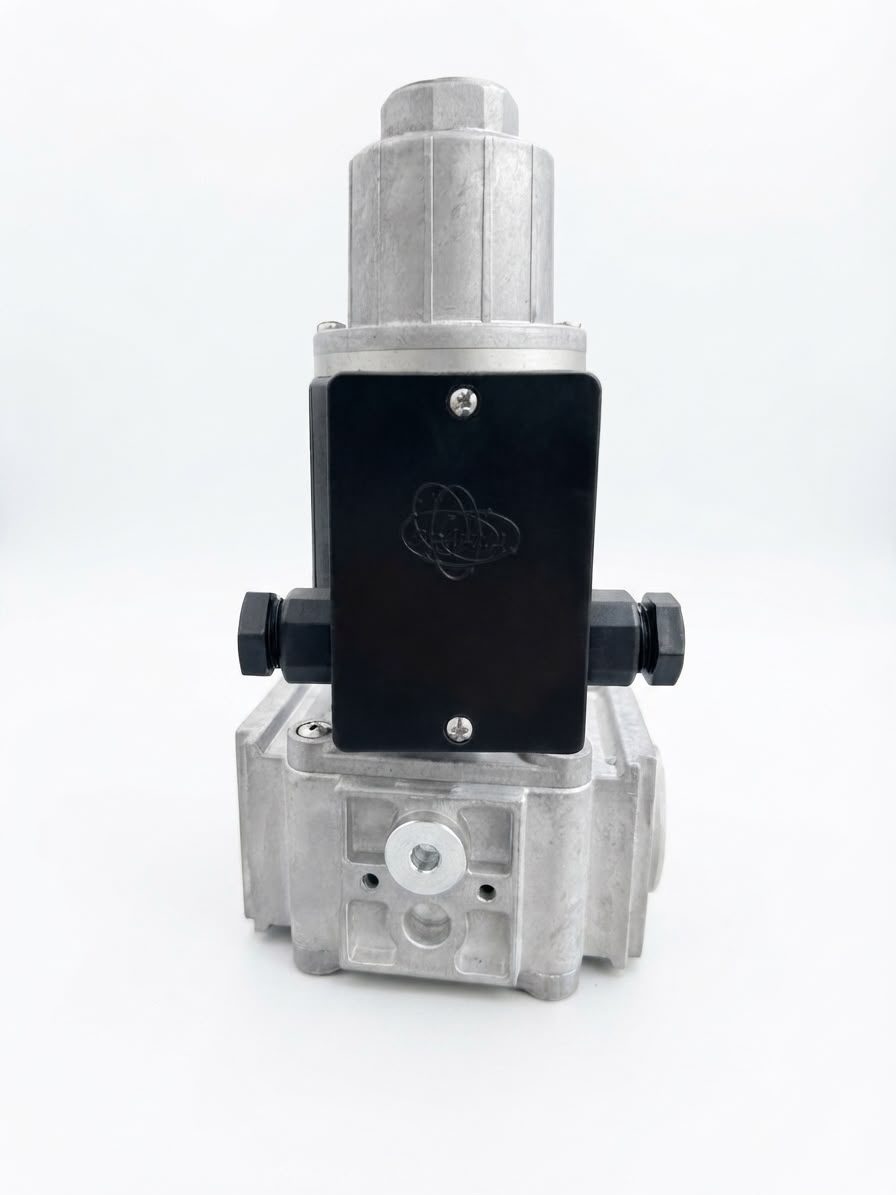

EG30*L2*GMO BRAHMA SOLENOID VALVE
Item Code: 3865381029
Product Overview
The BRAHMA EG30*L2*GMO Solenoid Valve is an essential, normally closed safety shut-off component engineered for civil and industrial combustion systems, including industrial burners and boilers. Featuring a slow opening action that is adjustable for precise flow control, it ensures quiet operation with an internal rectification circuit and enhanced durability from an integrated wire-net filter blocking particles larger than 1 mm. This valve reliably operates across a temperature range of -10°C to +60°C, handling a maximum operating pressure of 200 mbar, and conforms to stringent EN161 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Normally Closed (NC) Gas Solenoid Valve |
| Opening Type | Slow Opening |
| Connection Size | 1-inch G threaded inlet/outlet (DN25) |
| Class | A |
| Supply Voltage | 230 Vac / 50-60 Hz |
| Power Consumption | 33 W (for 230V AC models) |
| Operating Pressure (Max) | 200 mbar (0.2 bar) |
| Operating Temperature | -10°C to +60°C |
| Protection Degree | IP54 |
| Closing Time | ≤ 1s |
| Mounting | Vertical and Horizontal |
| Body Material | Die-cast aluminum |
| Weight | 2600g |
| Standards Compliance | EN161 |
| CE Certificate | CE Reg. N° 63AQ0626 |
Standard Accessory Store
₹11,999
GST @ 18% IncludedAvailability:In Stock (1 PIECESs)
Shipping:Dispatched in 24 Hours
