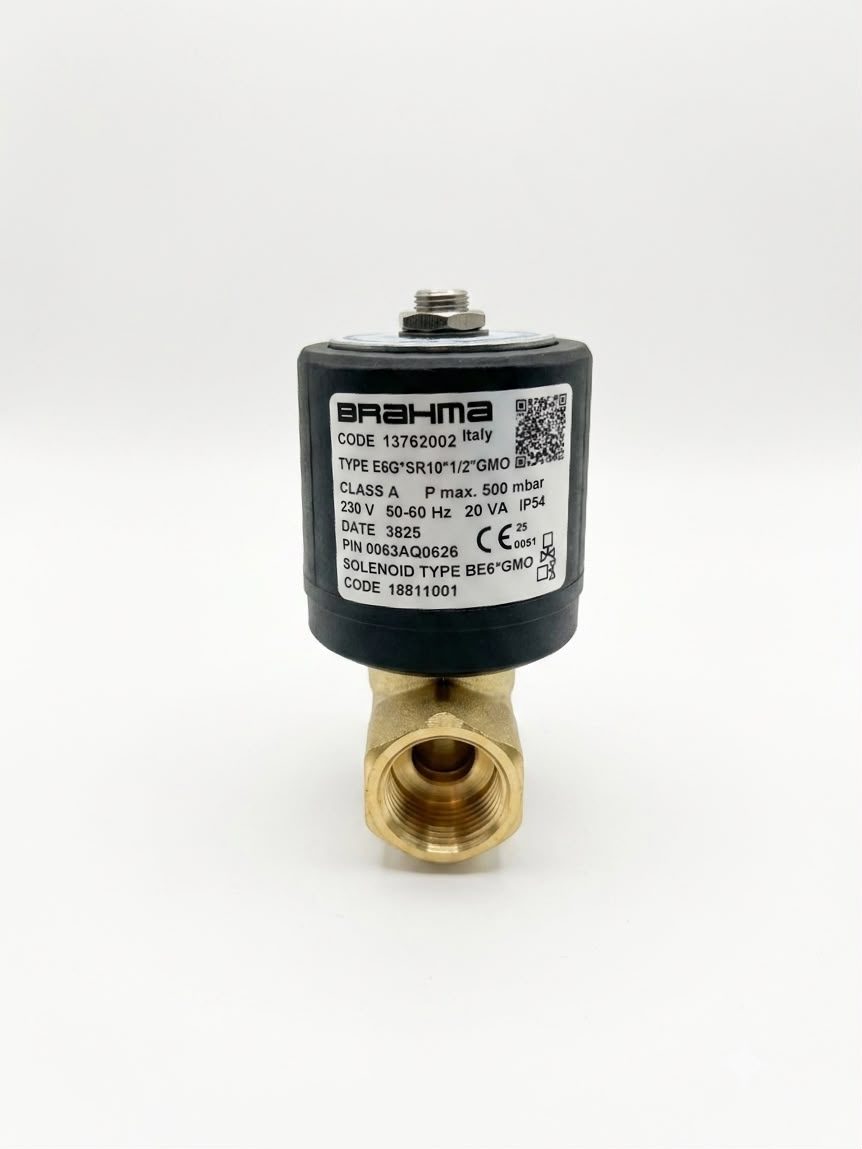

E6G*SR10*1/2GMO BRAHMA SOLENOID VALVE
Item Code: 38659414103
1 / 3Product Overview
The BRAHMA E6G*SR10*1/2GMO is a reliable normally closed, fast-opening gas solenoid valve, essential for precise gas flow control and safety shut-off in industrial and civil heating systems. Designed for applications in burners, boilers, and furnaces, it features a 1/2" threaded connection and operates effectively up to 1 bar pressure with a 230Vac supply. This spare part ensures dependable performance in demanding combustion environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Connection Size | 1/2" |
| Type / Model | E6G*SR10*1/2*GMO |
| Brand | BRAHMA |
| Valve Action | Normally closed, fast opening gas valve |
| Operating Pressure | Up to 1 bar (Max. 500 mbar) |
| Supply Voltage | 230Vac / 50-60Hz |
| Power Consumption | 20 VA |
| Operating Temperature | -10°C to +60°C |
| Protection Degree | IP54 |
| Orifice Diameter | 10 mm |
| Nominal Flow Rate | 3.9 m³/h (referred to ΔP 2.5mbar, δr=0.5545) |
| Closing Time | ≤ 1s |
| Opening Time | ≤ 1s (for quick opening versions) |
| Mounting | Vertical and Horizontal |
| Body Material | Die-cast brass |
| Compatible Gas Families | 1st family, 2nd family, 3rd family |
| Class/Group | Class A, Group 2 |
| Certifications | CE type Certificate (CE Reg. N° 63AQ0626) conforming to EN161, European Directives 90/396 and 93/68, European Gas Appliances Regulation (EU) 2016/426 (GAR), EC Low-voltage directive 2014/35/EU, and AGA-type certification. |
