DANFOSS OIL PUMP BFP 21R3
Item Code: 38620919570
1 / 2Product Overview

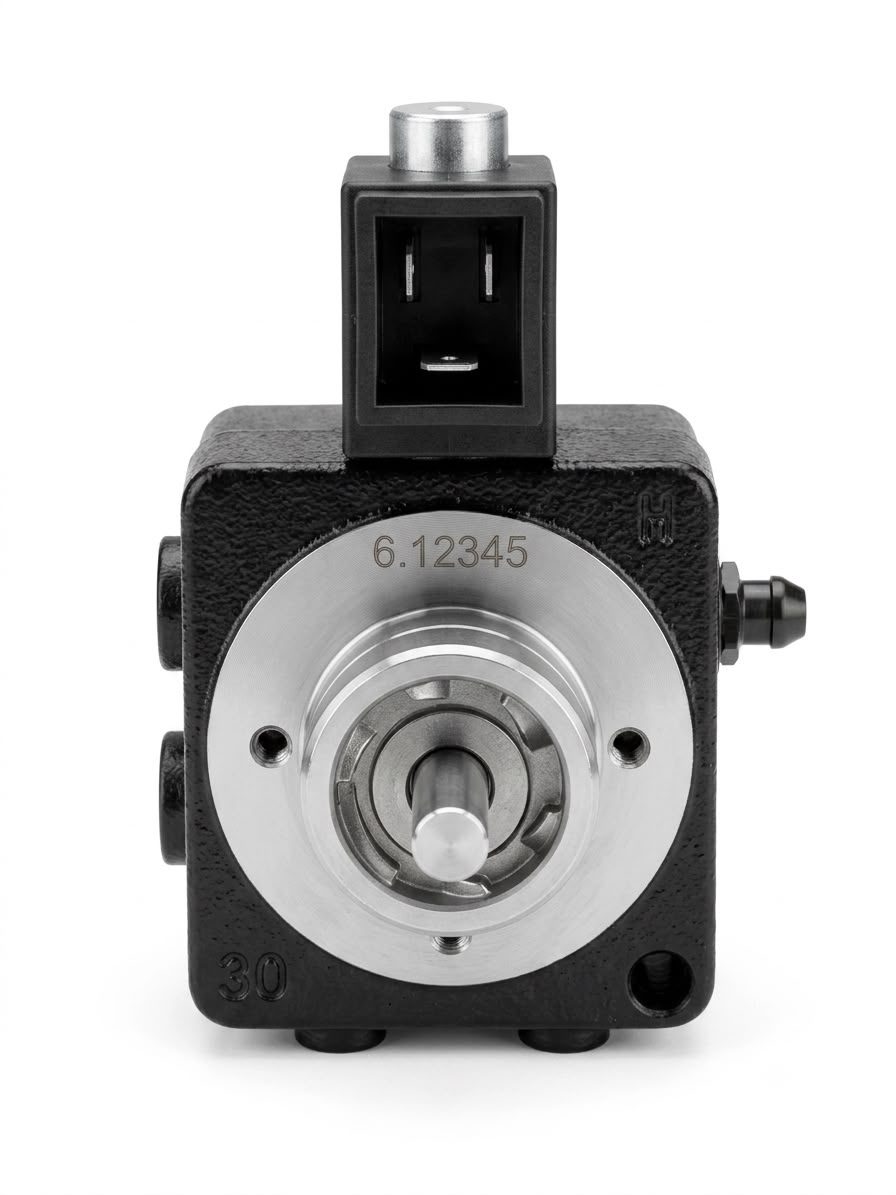

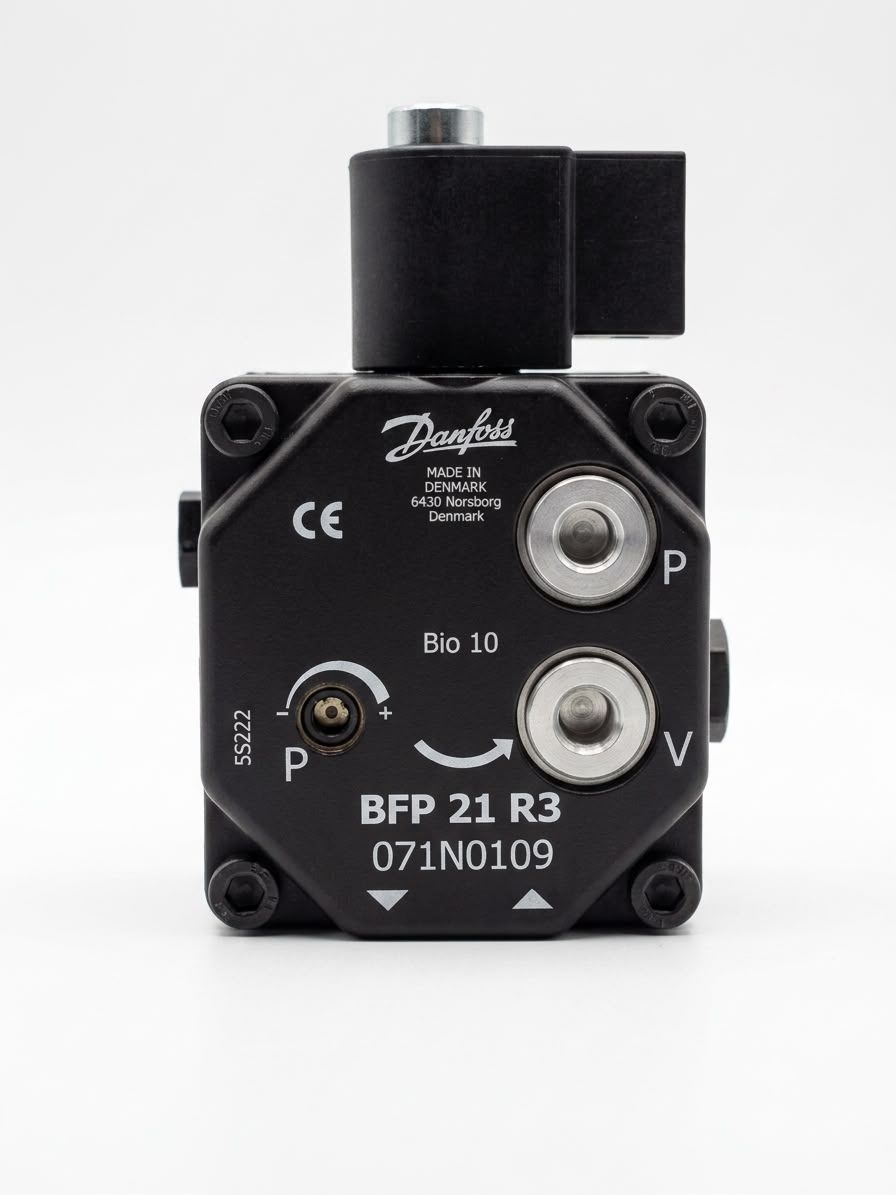

The Danfoss BFP21R3 is part of Danfoss’s Diamond series of oil burner pumps, built using Diamond-Like Carbon (DLC) technology that combines the hardness of diamond with the lubricity of carbon for exceptional robustness and a service life well beyond standard pumps. Designed for light oil and kerosene applications, it draws fuel from the tank and delivers it to the nozzle at a steady, well-regulated pressure for clean atomization and a stable flame. The pump features a built-in diaphragm pressure regulator with a self-cleaning action, a solenoid safety valve for reliable cut-off, and an easy-to-service cartridge filter that keeps fuel clean before combustion. Flexible enough for both 1-pipe and 2-pipe installations, the BFP21R3 is a proven, low-maintenance choice widely used across small and medium-sized domestic and light commercial oil burner systems for consistent, long-lasting performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Factory Pressure Setting | 10 bar or 12 bar |
| Filter Mesh/Grade | 200 µm |
| Shaft Diameter | 8 mm |
| Coil Voltage | 220 - 240V AC (230V, 50/60 Hz) |
| Coil Consumption | 9W |
| Capacity | 24 L/h (at 2800 min-1, 10 bar, 4.3 cSt) |
| Oil Type Compatibility | Kerosene/Light oil (up to 12 cSt), Biofuel blend up to 10% |
| Rotation | Right (clockwise, viewed from shaft end) |
| Speed (Min/Max) | 2400 rpm / 3450 rpm |
| Stages | 1 |
| Pressure Range (Adjustable) | 7 - 20 bar |
₹4,000
