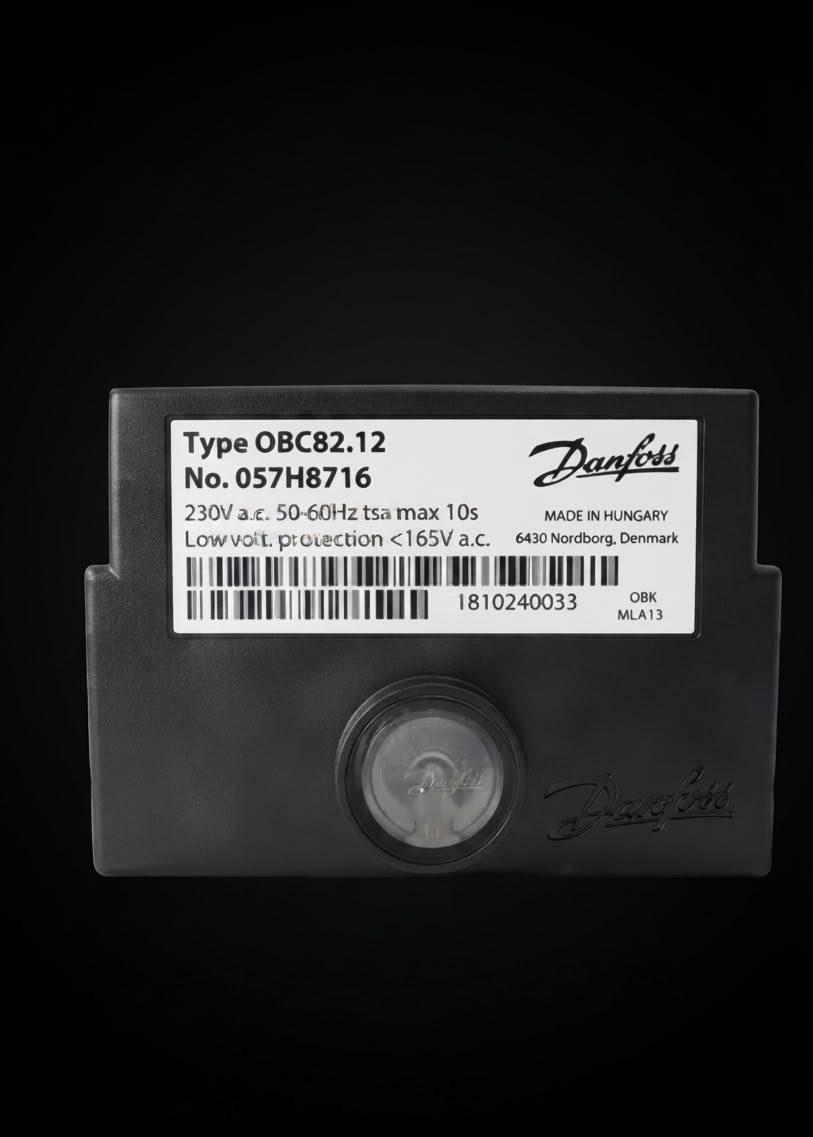

DANFOSS OBC82.12
Item Code: 38688101082
Product Overview
The Danfoss OBC 82.12 is an advanced microprocessor-based electronic oil burner control unit designed to ensure safe and efficient operation of two-stage oil burners. It precisely manages and monitors the combustion cycle, offering stable and accurate timings even with variations in supply voltage and ambient temperature ranging from -20 to +60°C. This robust control features undervoltage protection, overvoltage protection, and a quick reaction time of max. 1 second on flame failure, enhancing overall system reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Make | Danfoss |
| Model | OBC 82.12 |
| Rated Voltage | 230 V~ |
| Operating Range | 195-253 V~ |
| Frequency | 50-60 Hz ± 6% |
| Ambient Temperature | -20 to +60°C |
| Enclosure | IP40 |
| Reaction Time on Flame Failure | Max. 1 s |
| Flame Monitoring | UV, LD or LDS |
| Consumption | 10 VA |
| Safety Time (t2) | 10 seconds |
| Pre-purge (t1) | 13 seconds |
| Pre-ignition (t3) | 13 seconds |
| Undervoltage Protection Activation | < 170 V |
| Overvoltage Protection Activation | > 264 V |
| Protection Class | II |
| Pollution Degree | 2 |
| Main Fuse (Terminal Load) | Max. 10 A |
| Required Flame Signal (No flame / dark) | ≤5 µA |
| Required Flame Signal (Flame / light) | ≥65 µA |
| Max. Cable Length (OBC to sensor) | 20 m (installed separately) |
