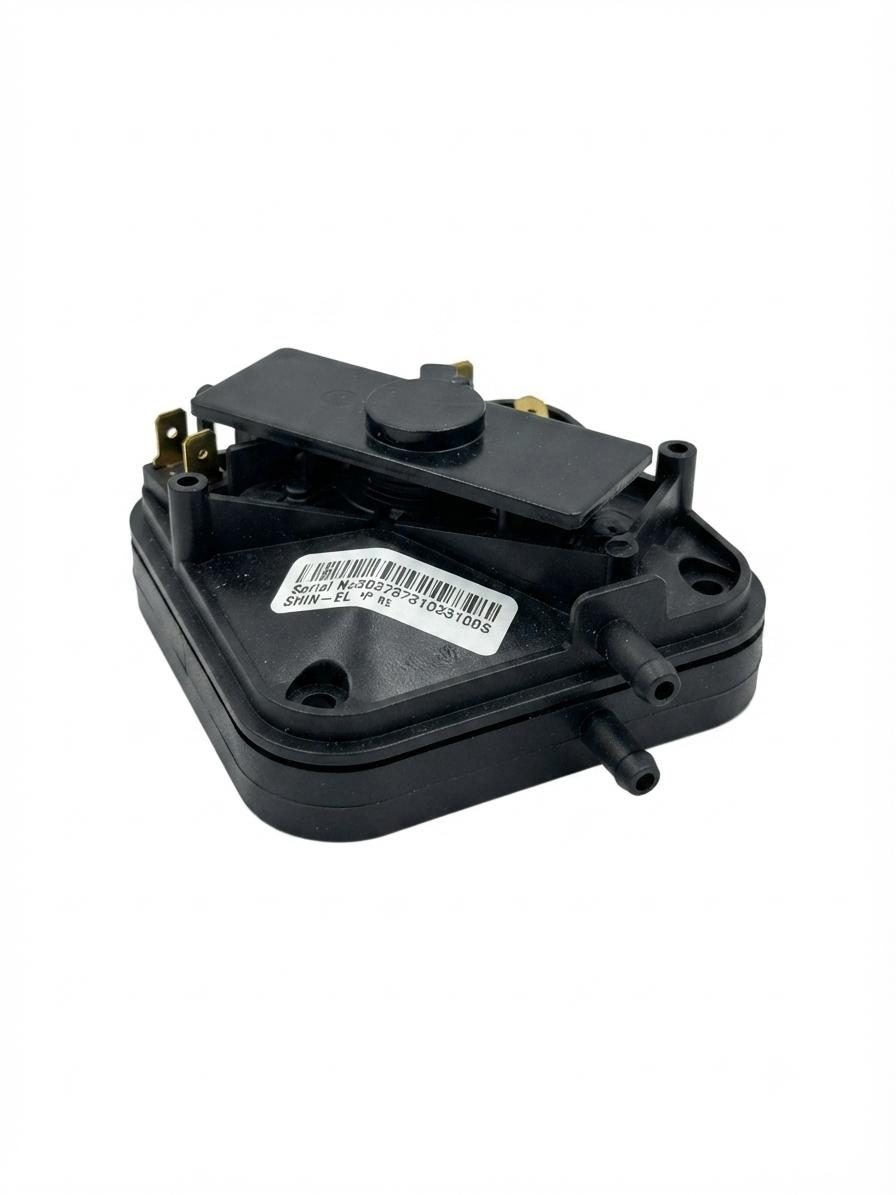

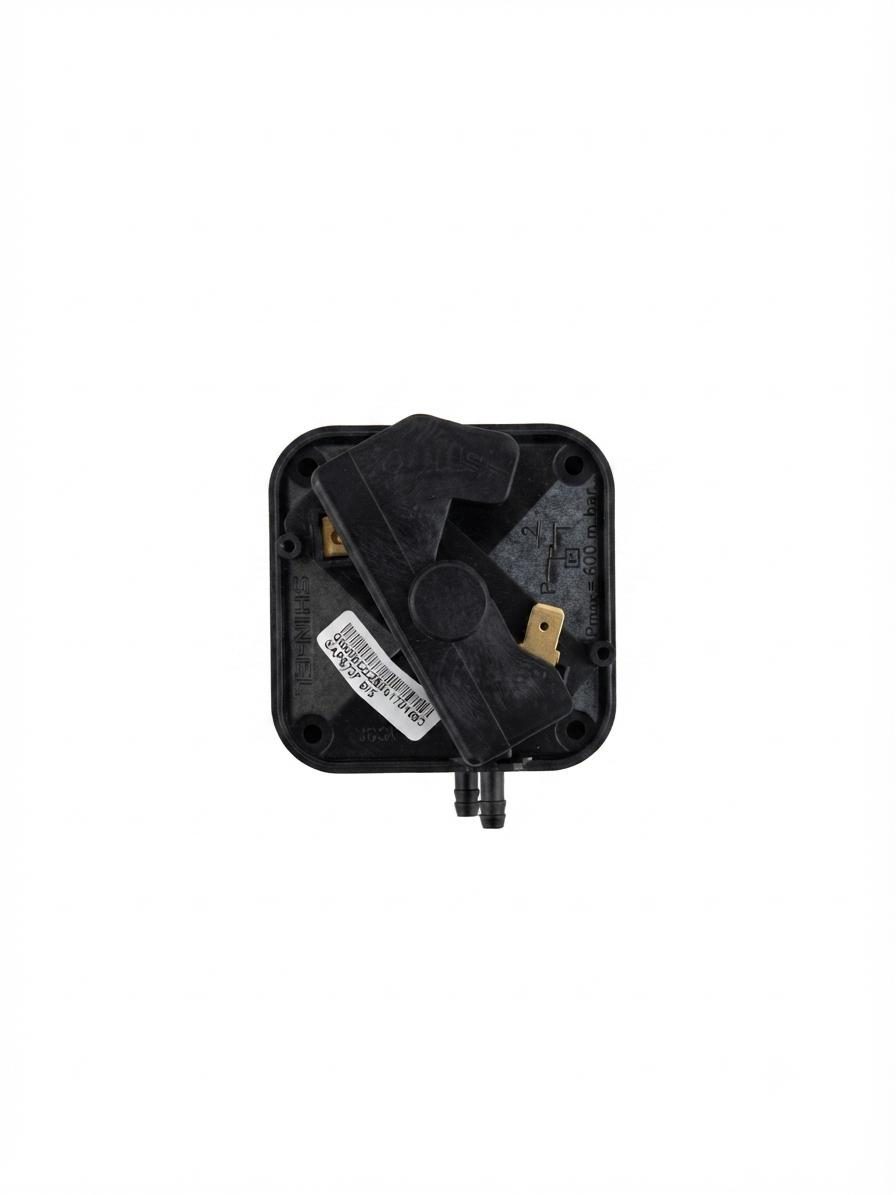

AIR PRESSURE SWITCH SAPS72F SHINEAU
Item Code: 38674213821
1 / 2Product Overview
The SHINEAU SAPS72F is a differential pressure type air switch essential for monitoring air flow and pressure in industrial gas/oil burners and control panels. Designed for precise operation within a 0 to 30 mmH2O range, it features robust PC body construction with Silicon diaphragm and bellows, ensuring durability. With electrical ratings of 5A – 250VAC and an IP54 protection class, it offers dependable performance for critical process control, enduring up to 200,000 mechanical cycles.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Differential pressure type |
| Control Fluid | Air |
| Electrical Ratings | 5A – 250VAC (Resistive load) |
| Operating Pressure Range | 0 to 30 mmH2O (customizable pressure point) |
| Differential Pressure (ΔP) | ≤ 5 mmH2O |
| Maximum Permissible Pressure | 500 mbar (In rush pressure) |
| Allowable Temperature | -20 ~ 60℃ |
| Allowable Humidity | RH 0 ~ 80% |
| Protection Class | IP54 |
| Materials | Body: PC (G/F 30%), Diaphragm: Silicon, Bellows: Silicon, Spring: SUS304 |
| Mechanical Life Cycle | 200,000 Cycles |
| Electrical Life Cycle | 100,000 Cycles |
Standard Accessory Store
₹1,999
GST @ IGST@18% IncludedAvailability:In Stock (3 PIECESs)
Shipping:Dispatched in 24 Hours
