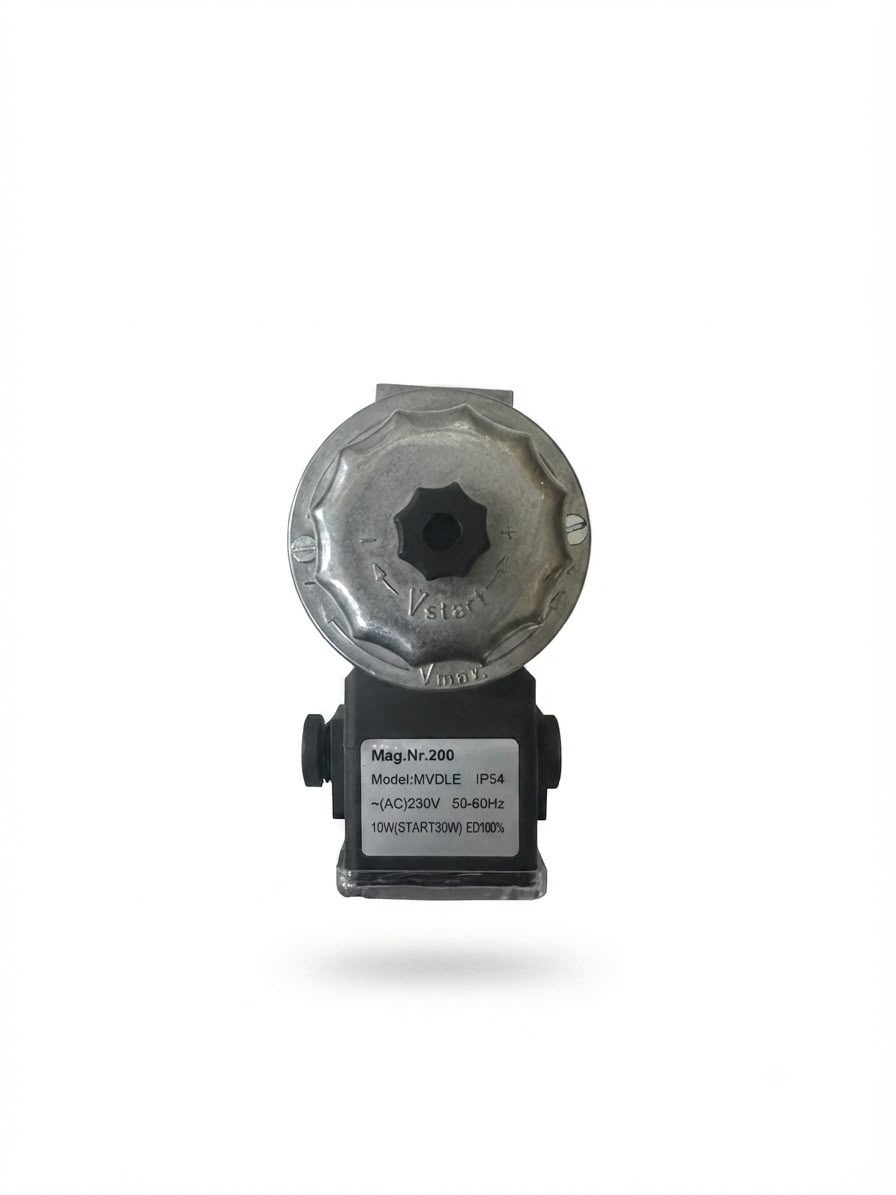

T-MVDLE 210/5 SOLENOID VALVE
Item Code: 38685588150
Product Overview
The Dungs MVDLE 210/5 is a single-stage, normally closed, automatic safety solenoid valve primarily used for gas burning equipment and gas appliances. It is characterized by its slow opening and fast closing operation, and it allows for both initial fast stroke and main gas volume adjustments. Manufactured by Dungs in Germany, this valve is designed for industrial and commercial heating applications, where one or two such shutoff valves are often required in series to control the gas supply. It is suitable for use with natural gas, propane, butane, air, and other inert, dry gaseous media.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Dungs |
| Type | Single-stage safety solenoid valve |
| Valve Operation | Normally closed, slow opening with adjustable fast stroke, fast closing with adjustable main volume |
| Connection Size | Rp 1" (pipe thread as per ISO 7/1) |
| Maximum Operating Pressure | 360 mbar (36 kPa / 5 PSI) |
| Supply Voltage | 230V AC |
| Power Consumption | 25W or 25VA |
| Frequency | 50-60 Hz |
| Protection Class | IP54 |
| Duty Cycle | 100% ED (Continuous operation) |
| Ambient Temperature | -15°C to +60°C |
| Body Material | Aluminum |
| Seal Material | NBR basis |
